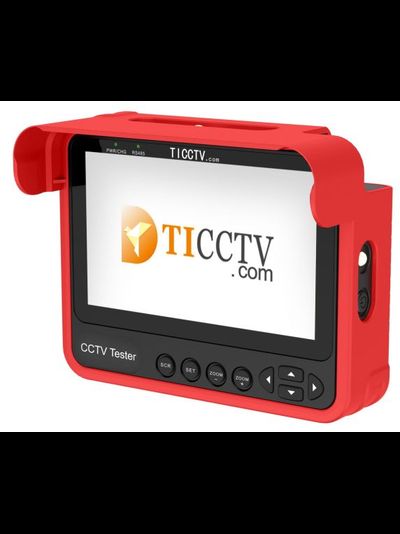

:format(webp):no_upscale()/b987564cc1fccd6.ru.s.siteapi.org/img/39trjmvcloowwo80kcwss08ssgsc8s "HD combine tester DT-V70")
:format(webp)/b987564cc1fccd6.ru.s.siteapi.org/img/39trjmvcloowwo80kcwss08ssgsc8s)
-
Описание
Analog SD and HD test Signal Format NTSC/PAL/*HD-CVI3.0/*AHD3.0/*HD-TVI3.0 Signal Level 1Vpp， 12V Power Output Power Output 12V/1A Output Interface ： Circular outer diameter
4mm,Inner needle 1.6mmAudio Test Audio Test A audio signal input Coaxial PTZ Control test Communication interface Video IN BNC interface Communication protocols *CVI（ dahua coax） *AHD（ Pelco c） *TVI（ Hikvision）
*UTC (SD-UTC)RS485 PTZ Control test Communication interface RS485 Communication protocols Pelco-D/P、 Samsung、 Panasonic、 Lilin、 Yaan...more than
30 protocolsBaud rate 150， 300， 600， 1200， 2400， 4800， 9600， 19200bps LED torch Three LED Three 35lm LED ， can tun on individually when device
is offPower Charger Micro USB 5v1A charge Battery 18650 lithium battery*2， capacity 2000 mAh*2， working
time about 8 hoursSystem Specification Display 4.3 inch TFT 480*272 resolution， 262K color， back
light level adjustableOperation Power button， main control keypad of 8 keys， LED push
switch *3Setting Chinese、 English， user optional Keyboard tone On/Off Working environment and specification Working temperature -10℃ ---+55℃ Working humidity 30%-90% Device Dimension 120*30*95mm Weight 0.3kg(device with battery)
| Analog SD and HD test | |
| Signal Format | NTSC/PAL/*HD-CVI3.0/*AHD3.0/*HD-TVI3.0 |
| Signal Level | 1Vpp， |
| 12V Power Output | |
| Power Output | 12V/1A Output Interface ： Circular outer diameter 4mm,Inner needle 1.6mm |
| Audio Test | |
| Audio Test | A audio signal input |
| Coaxial PTZ Control test | |
| Communication interface | Video IN BNC interface |
| Communication protocols | *CVI（ dahua coax） *AHD（ Pelco c） *TVI（ Hikvision） *UTC (SD-UTC) |
| RS485 PTZ Control test | |
| Communication interface | RS485 |
| Communication protocols | Pelco-D/P、 Samsung、 Panasonic、 Lilin、 Yaan...more than 30 protocols |
| Baud rate | 150， 300， 600， 1200， 2400， 4800， 9600， 19200bps |
| LED torch | |
| Three LED | Three 35lm LED ， can tun on individually when device is off |
| Power | |
| Charger | Micro USB 5v1A charge |
| Battery | 18650 lithium battery*2， capacity 2000 mAh*2， working time about 8 hours |
| System Specification | |
| Display | 4.3 inch TFT 480*272 resolution， 262K color， back light level adjustable |
| Operation | Power button， main control keypad of 8 keys， LED push switch *3 |
| Setting | Chinese、 English， user optional |
| Keyboard tone | On/Off |
| Working environment and specification | |
| Working temperature | -10℃ ---+55℃ |
| Working humidity | 30%-90% |
| Device Dimension | 120*30*95mm |
| Weight | 0.3kg(device with battery) |
