DT-T71

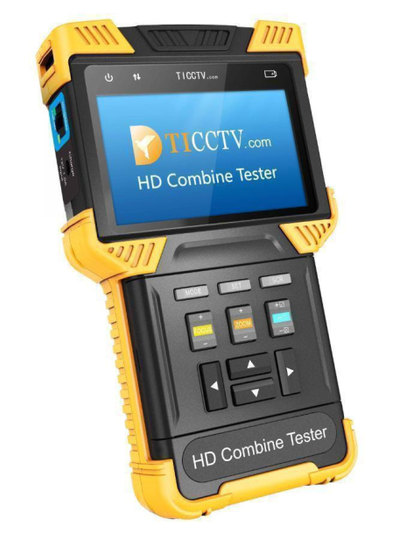

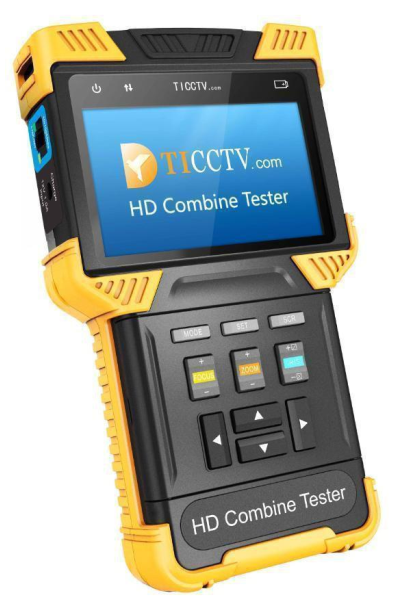

HD Combine Tester DT-T71

1.Основные характеристики:

Support Analog , IPC(H.264/ H.265/ 4K) , AHD 3.0,TVI 3.0,CVI 3.0 Camera
Step by step IPC test, quickly locate failure
ONVIF highly compatible
Ergonomic design, operate with single hand.
Real time operation prompt
12V/1A power output
Dual 100M network port, capable of detecting packet lost, monitoringnetwork flow
TDR RJ45 CableTest
4.0 inch all viewing angle display， 800X480 resolution, 16.7Mcolor

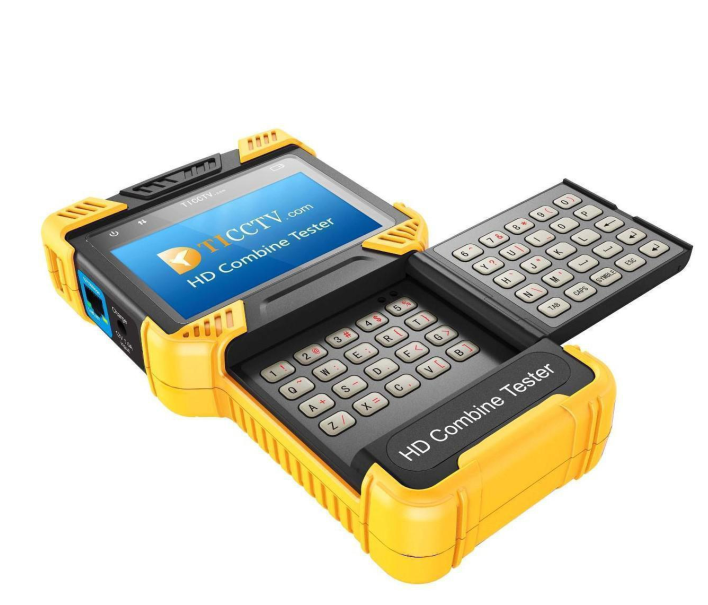

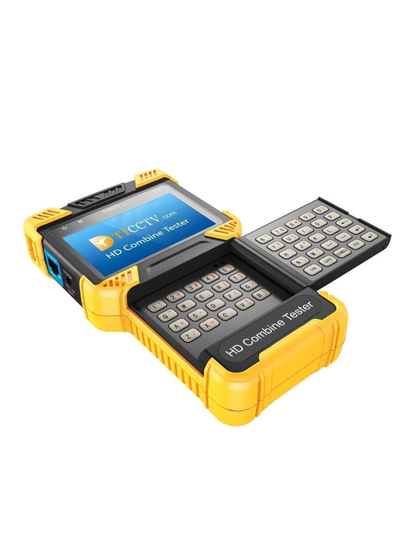

Swing keyboard input,QWERTY.
Changeable Li-polymer battery, battery working time 5 hours
With rubber protection layer
Dual LED torch
Software upgrade online

24500 ₽ ₽

Купить в 1 клик

Избранное

1.Основные характеристики:

Support Analog , IPC(H.264/ H.265/ 4K) , AHD 3.0,TVI 3.0,CVI 3.0 Camera
Step by step IPC test, quickly locate failure
ONVIF highly compatible
Ergonomic design, operate with single hand.
Real time operation prompt
12V/1A power output
Dual 100M network port, capable of detecting packet lost, monitoringnetwork flow
TDR RJ45 CableTest
4.0 inch all viewing angle display， 800X480 resolution, 16.7Mcolor
Swing keyboard input,QWERTY.
Changeable Li-polymer battery, battery working time 5 hours
With rubber protection layer
Dual LED torch
Software upgrade online

Описание

model	DT-T71
IPC test
protocol	ONVIF, RTSP, RTP
Ethernet test	10/100M Ethernet Link test； Ethernet loop detect； DHCP client/ DHCP Server； Link quality indicator；
IP Setting	Manual IP/ DHCP client/ DHCP Server
IPC Test	Discover, real time video, camera profile setting ,PT test, inter-subnet discover ONVIF device
IPC Image Test	H.265/ H.264 Encode, Support 4K@30FPS Digital zoom of video( 8step)
Interface	Single port RJ45 Ethernet 100Mbps
Analog video test
Video standard	NTSC, PAL/HD-TVI/AHD/HD-CVI
Video single	1Vpp
Video input/output	Video IN BNC input， Video OUT BNC output
Digital zoom of video	Support 8 step
Video generator	Send PAL/NTSC video test signal ;send CVI,AHD,TVI video test signal (720P/1080P)
POE test
PSE test	Tester power supply. 802.3af; PD actual power detection
TDR RJ45 Cable Test
RJ45 Cable Test	130~200m RJ45 cable test， open/short/broken wire， resolution is 0.1m , precision is 1m
Audio test
Audio test	One audio signal input
Coaxial PTZ control test
Communication Interface	Video IN BNC Interface
Communication Protocol	CVI Protocol (Dahua coax) ,AHD Protocol (Pelco c) ,TVI Protocol (Hikvision)
485 PTZ control test
Communication Interface	RS485
Communication protocol	Hikvision、 Pelco-D/P、 Samsung、 Panasonic、 Lilin、 Yaan...more than 30 protocols
Baud rate	150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
LED light
LED light	Two 35lm LED

System parameter
Display	4.0inch TFT 800RGB480(WVGA) resolution， 16.7M color， back light level adjustable
Operation	Power button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys.
Language	Chinese,English
Auto Standby	Close/5-60 minutes
Keypad tone	On/Off
power
Charger	Input 100V-240V-50/60Hz, Output 12V/1A
Battery	Dedicate li-polymer battery 7.4V, user replaceable, capacity 22.2Wh
Charge	Charge 6-8 hours
Power saving	Time timeout can be set to automatically switch, battery icon real time display
other
Working temperature	-10℃ ~+55℃
Working humidity	30%~90%
Device Dimension	190x113x37mm
Weight	0.5kg(device with battery) / 1.6kg(gross)
